SII Type Single Airport Control Power Cable

The “SII single core Airport Cable” refers to a single-core cable used in airports, possibly for power or data transmission related to airport systems. These cables are typically used for runway lighting, ground power supply, or other critical airport infrastructure.

SII 35 + 4×1 ft Single Airport Control Power Cable

Voltage range: 1000 V
Insulation of 1mm² Conductor: XLPE 90℃
Temperature range of 1mm² Conductor: -25℃ to +90℃
Inner sheath: PUR
Temperature range of Inner sheath: -55℃ to +80℃
Outer sheath: PUR
Temperature range of Outer sheath: -55℃ to +80℃

SII 50 + 4×1 ft Single Airport Control Power Cable

Voltage range: 1000 V
Insulation of 1mm² Conductor: XLPE 90℃
Temperature range of 1mm² Conductor: -25℃ to +90℃
Inner sheath: PUR
Temperature range of Inner sheath: -55℃ to +80℃
Outer sheath: PUR
Temperature range of Outer sheath: -55℃ to +80℃

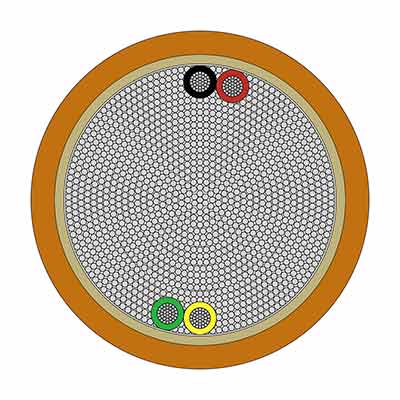

SII 70 + 4×1 ft Single Airport Control Power Cable

Voltage range: 600/1000 V
Insulation of 1mm² Conductor: XLPE 90℃
Temperature range of 1mm² Conductor: -25℃ to +90℃
Inner sheath: PUR
Temperature range of Inner sheath: -55℃ to +80℃
Outer sheath: PUR
Temperature range of Outer sheath: -55℃ to +80℃

SII 120 + 4×1 ft Single Airport Control Power Cable

Voltage range: 600/1000 V
Insulation of 1mm² Conductor: XLPE 90℃
Temperature range of 1mm² Conductor: -25℃ to +90℃
Inner sheath: TPU
Temperature range of Inner sheath: -55℃ to +80℃
Outer sheath: PUR
Temperature range of Outer sheath: -55℃ to +80℃

SII Type Single Airport Control Power Cable Specification

Type	35 mm² flexible, Conductor Wire diameter	35 mm² flexible, Conductor Copper weight	1 mm² flexible, Conductor Wire diameter	1 mm² flexible, Conductor Copper weight	Type voltage test, 15 min. in water	Halogen content	Resistance at +20°C	Weight total
	mm	Kg/km	mm	Kg/km	V	ppm	Ω/km	Kg/m
SII 35 + 4x1 ft	0,20	305	0,19	8,3	4000	<400	0,54 ±0,01	0,46
SII 50 + 4x1 ft	0,20	440	0,19	8,3	4000	<400	0,348 ±0,01	0,6
SII 70 + 4x1 ft	0,20	620	0,19	8,3	4000	<400	0,249 ±0,01	0,8
SII 120+4x1 ft	0,30	1152	0,19	9,6	4000	<400	0,158 ±0,01	1,4
