SXII Type Ground Airport Power Cable

SXII cables are designed to handle significant electrical current while maintaining flexibility, making them suitable for situations where movement or bending is required. Usually used in aircraft ground power: Providing power to aircraft during maintenance or ground operations.

SXII 3×50+3×16+12×1 Cable

Voltage range: 1000 V
Insulation of 50mm² Conductor: XLPE 90°C
Insulation color of 50mm² Conductor: Brown, Black, White
Insulation of 16mm² Conductor: XLPE 90°C
Insulation color of 16mm² Conductor: Light Blue
Insulation of 1mm² Conductor: PVC 100°C
Insulation color of 1mm² Conductor: Black, Grey, Red, Blue, Brown, Yellow, Green, Orange, Pink, White/Black, White/Grey, White/Red
Inner sheath: PUR
Inner sheath Color: Neutral
Outer sheath: PUR
Outer sheath Color: Orange

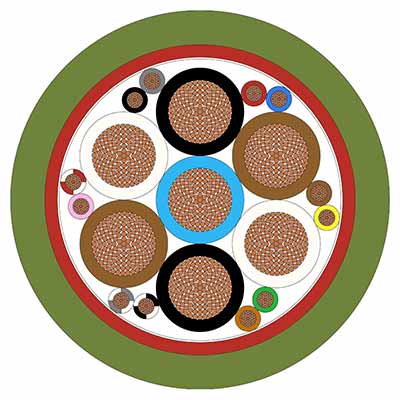

SXII 7×16+12×1 Cable

Voltage range: 600/1000 V
Insulation of 7x16mm² Conductor: XLPE 90°C
Insulation color of 7x16mm² Conductor: Light Blue, 2xBlack, 2xBrown, 2xWhite
Insulation of 1mm² Conductor: PVC 100°C
Insulation color of 1mm² Conductor: Black, Grey, Red, Blue, Brown, Yellow, Green, Orange, Pink, White/Black, White/Grey, White/Red
Double outer sheath: PUR/PUR
Double outer sheath Color: Orange/Red

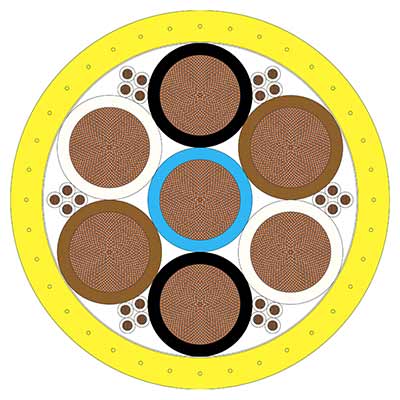

SXII 7×35+24×1 EMC RET-AT Cable

Voltage range: 600/1000 V
Insulation of 35mm² Conductor: XLPE 90°C
Insulation color of 35mm² Conductor: 1x L-Blue, 2x Brown, 2x Black, 2x White
Insulation of 1mm² Conductor: PVC 100°C
Insulation color of 1mm² Conductor: Black number 1-24 on white surface
Inner sheath: TPU
Outer sheath: TPU

SXII Type Ground Airport Power Cable Specification

Type	50 mm² flexible, Conductor Wire diameter	50 mm² flexible, Conductor Copper weight	16/35 mm² flexible, Conductor Wire diameter	16/24 mm² flexible, Conductor Copper weight	1 mm² flexible, Conductor Wire diameter	1 mm² flexible, Conductor Copper weight	Routine voltage test, 5 min.	Resistance 2 core at +20°C	Resistance 2 core at +70°C	Weight total
	mm	Kg/km	mm	Kg/km	mm	Kg/km	V	Ω/km	Ω/km	Kg/m
SXII 3x50+3x16+12x1 Cable	0,20	480	0,20	154	0,19	8.3	3500	0,366±0,01	0,439±0,01	2,4
SXII 7x16+12x1 Cable	-	-	0,20	154	0,19	8.3	2000	0,523±0,01	0,627±0,01	1,4
SXII 7x35+24x1 EMC RET-AT Cable	-	-	0,20	336	0,19	9,6	2000	0,267±0,01	0,320±0,01	3.5
