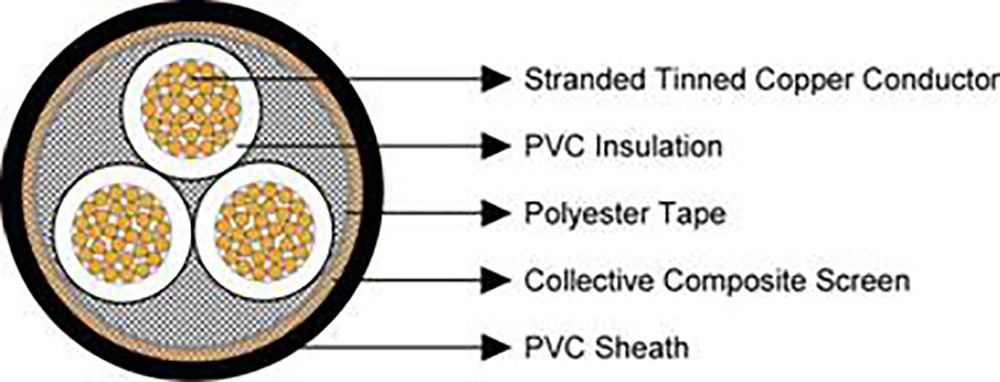

Type 1 1.1/1.1KV Collectively Mining Cable Construction
| Conductors | Stranded copper conductor. |
| Insulation | PVC. |
| Bedding | Polyester tape. |
| Collective Composite Screen (earth conductor) | Tinned annealed copper braiding interwove with polyester yarn. |
| Sheath | PVC sheath. |
Type 1 1.1/1.1KV Collectively Mining Cable Application
Type 1 1.1/1.1KV Collectively Screened cables are used for wiring of machines, or between machines and equipment where PVC is suitable.
Type 1 1.1/1.1KV Collectively Mining Cable Standards
AS/NZS 1972:2006
AS/NZS 1125
AS/NZS 3808
Type 1 1.1/1.1KV Collectively Mining Cable Specification
| Number of Cores | Nominal Conductor Area | Strand Size | Insulation Thickness | Core screen | Thickness of Sheath | Nominal Overall Diameter | Nominal Weight | |
|---|---|---|---|---|---|---|---|---|
| Strand Size | Area of Screen | |||||||
| mm² | No/mm | mm | mm | mm² | mm | mm | kg/100m | |
| 2 | 1.5 | 30/0.25 | 0.8 | 0.2 | 2.3 | 0.8 | 9.2 | 12 |
| 3 | 1.5 | 30/0.25 | 0.8 | 0.2 | 2.5 | 0.8 | 9.7 | 15 |
| 4 | 1.5 | 30/0.25 | 0.8 | 0.2 | 2.6 | 0.8 | 10.5 | 18 |
| 6 | 1.5 | 30/0.25 | 0.8 | 0.2 | 3.4 | 0.8 | 12.6 | 25 |
| 16 | 1.5 | 30/0.25 | 0.8 | 0.2 | 5.1 | 1 | 18.7 | 55 |
| 30 | 1.5 | 30/0.25 | 0.8 | 0.25 | 8.8 | 1.3 | 24.6 | 96 |
