Type 209 Flexible Copper Screened Rubber Mining Cable

Type 209 cables are used as flexible feeder cables for general use across a range of Mining applications. Type 209 cables are constructed of three tinned copper insulated power cores and a center conductor, encased in a heavy duty Polychloroprene compound. As with all such mining cables, Type 209 cables are flame retardant, water resistant and oil resistant.

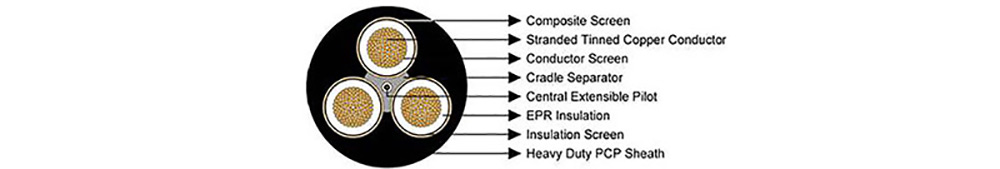

Type 209 Mining Cable Construction

VOLTAGE	1.1kV (Type 209.1) 3.3kV (Type 209.3) 6.6kV (Type 209.6) 11kV (Type 209.11)
3×Conductors	Flexible stranded tinned annealed copper conductor
CONDUCTOR SCREEN	Paper Separator (1.1kV) Semi-conducting thermosetting material (3.3kV and above)
INSULATION	EPR (Ethylene Propylene Rubber)
INSULATION SCREEN	Synthetic tape (1.1kV) Semi-conducting thermosetting material (3.3kV and above)
BRAID	TCWB (Tinned Copper Wires / Polyamide yarns)
CABLE ASSEMBLY	Three screened power cored on cradle separator with central pilot core
OUTER SHEATH	Heavy duty PCP sheath

Type 209 Mining Cable Application

Type 209 series Mining Cable is mainly used as a flexible feeder to machinery, more suitable as a trailing cable rather than for reeling. Smaller sizes are used for drills and hand held tools and equipment.

Type 209 Mining Cable Standards

AS/NZS 1802:2003
AS/NZS 1125
AS/NZS 3808
AS/NZS 5000.1

Type 209 Mining Cable Characteristics

Voltage Rating

Type 209.1 – 1.1kV
Type 209.3 – 3.3kV
Type 209.6 – 6.6kV
Type 209.11 – 11kV

Temperature Rating

-25℃ to +90℃

Type 209.1 Mining Cable
Type 209.3 Mining Cable
Type 209.6 Mining Cable
Type 209.11 Mining Cable

NO. CORES	NOMINAL CONDUCTOR AREA mm2	NUMBER NOMINAL DIAMETER WIRES n x mm	NOMINAL THICKNESS INSULATION mm	NOMINAL DIAMETER OVER INSULATION mm	CORE SCREEN SIZE mm	AREA OF SCREEN mm2	STRAND SIZE PILOT mm2	NOMINAL THICKNESS PILOT COVERING mm	NOMINAL THICKNESS SHEATH mm	NOMINAL DIAMETER mm	NOMINAL WEIGHT kg/100m
3	6	84/0.30	1.5	6.5	7/0.25	7.2	24/0.20	0.8	3.8	30	129
3	10	77/0.40	1.5	7.7	7/0.25	8.6	24/0.20	0.8	3.8	32.6	157
3	16	126/0.40	1.6	9	7/0.25	9.6	24/0.20	0.8	4	35.8	197
3	25	209/0.40	1.6	10.5	7/0.25	11.3	24/0.20	0.8	4.3	39.7	255
3	35	285/0.40	1.6	12.1	7/0.25	12.4	24/0.20	0.8	4.6	43.1	312
3	50	380/0.40	1.7	13.8	7/0.25	14.1	40/0.20	0.8	5	47.7	386
3	70	203/0.67	1.8	16.1	7/0.25	16.5	40/0.20	0.8	5.4	54	503
3	95	259/0.67	2	17.7	7/0.25	18.2	40/0.20	0.8	6	58.6	605
3	120	336/0.67	2.1	20	7/0.25	20.3	40/0.20	0.8	6.4	64.4	741
3	150	427/0.67	2.3	22.2	7/0.25	22.3	40/0.20	0.8	6.9	70.2	896
3	185	518/0.67	2.5	24.7	7/0.30	30.2	40/0.20	0.8	7.4	77.4	1092
3	240	672/0.67	2.8	27.9	7/0.30	33.6	40/0.20	0.8	8.2	86	1365
3	300	854/0.67	3	31	7/0.40	50.1	40/0.20	0.8	8.8	95.1	1715

NO. CORES	NOMINAL CONDUCTOR AREA mm2	NUMBER NOMINAL DIAMETER WIRES n x mm	NOMINAL THICKNESS INSULATION mm	NOMINAL DIAMETER OVER INSULATION mm	CORE SCREEN SIZE mm	AREA OF SCREEN mm2	STRAND SIZE PILOT mm2	NOMINAL THICKNESS PILOT COVERING mm	NOMINAL THICKNESS SHEATH mm	NOMINAL DIAMETER mm	NOMINAL WEIGHT kg/100m
3	16	126/0.40	3	12.6	7/0.25	13.1	24/0.20	0.8	5.3	46.2	301
3	25	209/0.40	3	14.1	7/0.25	14.8	24/0.20	0.8	5.6	50.1	369
3	35	285/0.40	3	15.4	7/0.25	15.8	24/0.20	0.8	5.9	53.5	431
3	50	380/0.40	3	16.9	7/0.25	17.2	40/0.20	0.8	6.3	57.6	507
3	70	203/0.67	3	18.9	7/0.25	18.6	40/0.20	0.8	6.6	62.5	624
3	95	259/0.67	3	20.1	7/0.25	20.3	40/0.20	0.8	7.1	66.2	719
3	120	336/0.67	3	22.2	7/0.30	27.2	40/0.20	0.8	7.4	72	876
3	150	427/0.67	3	24.0	7/0.40	39.6	40/0.20	0.8	7.8	78	1072
3	185	518/0.67	3	26.1	7/0.40	42.2	40/0.20	0.8	8.2	83.4	1236
3	240	672/0.67	3	28.1	7/0.40	46.6	40/0.20	0.8	8.8	90.3	1500

NO. CORES	NOMINAL CONDUCTOR AREA mm2	NUMBER NOMINAL DIAMETER WIRES n x mm	NOMINAL THICKNESS INSULATION mm	NOMINAL DIAMETER OVER INSULATION mm	CORE SCREEN SIZE mm	AREA OF SCREEN mm2	STRAND SIZE PILOT mm2	NOMINAL THICKNESS PILOT COVERING mm	NOMINAL THICKNESS SHEATH mm	NOMINAL DIAMETER mm	NOMINAL WEIGHT kg/100m
3	16	126/0.40	5	16.6	7/0.25	17.2	24/0.20	0.8	6.4	57.3	435
3	25	209/0.40	5	18.1	7/0.25	18.6	24/0.20	0.8	6.7	61.2	512
3	35	285/0.40	5	19.4	7/0.25	18.6	24/0.20	0.8	7	64.6	582
3	50	380/0.40	5	20.9	7/0.25	21.3	40/0.20	0.8	7.3	68.5	668
3	70	203/0.67	5	22.9	7/0.25	23.4	40/0.20	0.8	7.7	73.7	799
3	95	259/0.67	5	24.1	7/0.30	29.2	40/0.20	0.8	8.1	77.8	935
3	120	336/0.67	5	25.2	7/0.30	31.7	40/0.20	0.8	8.5	83.1	1090
3	150	427/0.67	5	28.0	7/0.40	45.7	40/0.20	0.8	8.9	89.1	1310
3	185	518/0.67	5	30.1	7/0.40	48.4	40/0.20	0.8	9.3	94.5	1480
3	240	672/0.67	5	32.7	7/0.40	52.8	40/0.20	0.8	9.9	101.4	1750

NO. CORES	NOMINAL CONDUCTOR AREA mm2	NUMBER NOMINAL DIAMETER WIRES n x mm	NOMINAL THICKNESS INSULATION mm	NOMINAL DIAMETER OVER INSULATION mm	CORE SCREEN SIZE mm	AREA OF SCREEN mm2	STRAND SIZE PILOT mm2	NOMINAL THICKNESS PILOT COVERING mm	NOMINAL THICKNESS SHEATH mm	NOMINAL DIAMETER mm	NOMINAL WEIGHT kg/100m
3	25	209/0.40	7.6	23.5	7/0.25	24.1	24/0.20	0.8	8.1	76.0	742
3	35	285/0.40	7.6	24.8	7/0.30	30.2	24/0.20	0.8	8.4	80.1	847
3	50	380/0.40	7.6	26.2	7/0.30	32.2	40/0.20	0.8	8.7	84.0	943
3	70	203/0.67	7.6	28.2	7/0.30	34.6	40/0.20	0.8	9.1	89.1	1093
3	95	259/0.67	7.6	29.5	7/0.40	48.4	40/0.20	0.8	9.6	94.1	1267
3	120	336/0.67	7.6	31.5	7/0.40	51.0	40/0.20	0.8	9.9	99.9	1436
3	150	427/0.67	7.6	33.3	7/0.40	54.5	40/0.20	0.8	10.3	104.0	1614
