Type 2S 1.1/1.1KV Collectively Screened Rubber Mining Cable

Type 2S 1.1/1.1 kV collectively screened cables are medium-voltage rubber-insulated power cables specifically engineered for underground mining applications. The “2S” designation refers to the cable’s construction type within the Australian standards framework, while the “1.1/1.1 kV” rating indicates its voltage capacity (phase-to-phase/phase-to-earth).

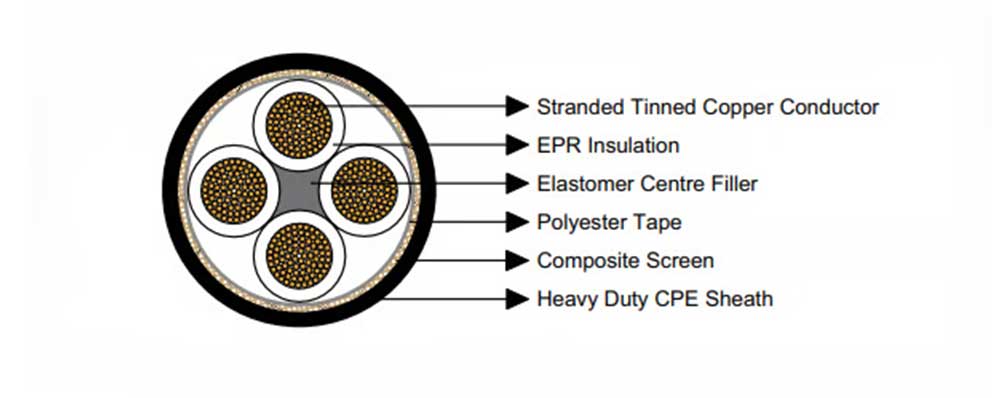

Type 2S 1.1/1.1KV Collectively Mining Cable Construction

Conductors	Stranded tinned annealed copper conductor.
Insulation	EPR.
Filling	Elastomer centre filler.
Bedding	Polyester tape.
Composite Screen (earth conductor)	Tinned annealed copper braiding interwove with polyester yarn.
Sheath	Heavy duty CPE sheath

Type 2S 1.1/1.1KV Collectively Mining Cable Application

Type 2S cables are remarkably versatile. Their applications range from powering large stationary equipment to supplying mobile machinery and lighting systems.

Type 2S 1.1/1.1KV Collectively Mining Cable Standards

AS/NZS 1972:2006
AS/NZS 1125
AS/NZS 3808

Type 2S 1.1/1.1KV Collectively Mining Cable Specification

Number of Cores	Nominal Conductor Area	Strand Size	Insulation Thickness	Core screen		Nominal Thickness of Sheath	Nominal Overall Diameter	Nominal Weight
Number of Cores	Nominal Conductor Area	Strand Size	Insulation Thickness	Strand Size	Area of Screen	Nominal Thickness of Sheath	Nominal Overall Diameter	Nominal Weight
	mm²	No/mm	mm	mm	mm²	mm	mm	kg/100m
2	1.5	30/0.25	1	0.2	5.3	1.8	14.7	17
4	1.5	30/0.25	1	0.2	12.1	1.8	19.9	26
6	1.5	30/0.25	1	0.2	22.6	1.8	25.7	35
16	1.5	30/0.25	1	0.25	113.1	1.8	47.1	71
20	1.5	30/0.25	1	0.25	159	1.8	53.2	82
