Type 440 Flexible Copper Screened Mining Cable With Three Pilot Core Interstitial

These type 440 trailing cables are mainly used as flexible feeder trailing cables for power supply to machinery and equipment, include 3 large pilots and a central semi-conductive cradle for support and protection of power cores. This metal-screened power cores cable with three pilot cores and suitable for trailing and most reeling applications. The cable has good flexibility and high resistance to abrasion and weathering.

Type 440 Mining Cable Construction

VOLTAGE	1.1kV (Type 440.1) 3.3kV (Type 440.3) 6.6kV (Type 440.6) 11kV (Type 440.11) 22kV (Type 440.22)
CONDUCTOR	Tinned annealed copper wires
CONDUCTOR SCREEN	Paper Separator (1.1kV) Semi-conducting tape and thermosetting material (3.3kV and above)
INSULATION	EPR (Ethylene Propylene Rubber) type R-EP-90
INSULATION SCREEN	Synthetic tape (1.1kV) Semi-conductive thermosetting compound
BRAID	Tinned copper/polyamide braid (3.3kV and above)

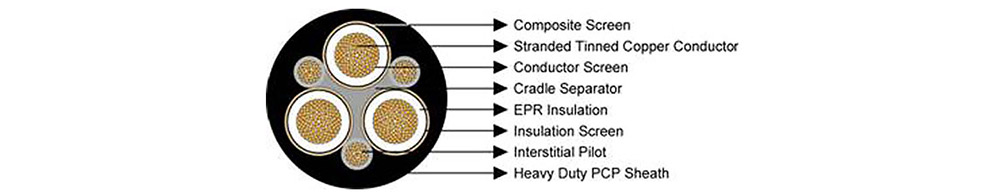

CABLE ASSEMBLY	Three screened power and three pilot cores laid up with right hand direction on cradle separator
INNER SHEATH	-
ARMOUR	-
OUTER SHEATH	Thermosetting compound HD-85-PCP - extra heavy duty, oil resistance and flame retardant

Type 440 Mining Cable Application

Underground Mining

Type 440 cables are extensively utilized in underground mining operations, powering essential equipment such as shuttle cars that transport coal or ore from the mining face to conveyor systems, drill rigs for exploration and production drilling, and conveyor systems that move materials throughout the mine.

Open-Cut Mining

In surface mining environments, Type 440 cables supply power to massive equipment like draglines that remove overburden, mobile substations that distribute power across mining sites, and electric shovels that excavate and load materials.

Tunnel Boring Operations

During tunnel construction, Type 440 cables provide temporary power to boring machines, lighting systems, and auxiliary equipment.

Harsh Industrial Environments

Beyond mining, these cables are suitable for any industrial setting characterized by high mechanical stress, abrasive conditions, and challenging operational parameters.

Type 440 Mining Cable Characteristics

Voltage Rating

1.1kV to 22kV

Temperature Rating

-25 ℃ to +90 ℃

Type 440 Mining Cable Standards

AS/NZS 2802: 2000, AS/NZS 1125:2001, AS/NZS 2802:2003,

Water resistant and flame retardant, UV, sunlight, ozone and oil resistant

Type 440.1 Mining Cable Specification
Type 440.3 Mining Cable Specification
Type 440.6 Mining Cable Specification
Type 440.11 Mining Cable Specification
Type 440.22 Mining Cable Specification

NOMINAL CONDUCTOR AREA mm2	THICKNESS OF INSULATION mm	NUMBER AND NOMINAL DIAMETER OF WIRES n x mm	NOMINAL DIAMETER OVER INSULATION mm	CORE SCREEN SIZE mm	AREA OF SCREEN mm2	PILOT COND.STRAND/SIZE No/mm	THICKNESS EPR COVERING mm	NOMINAL THICKNESS OF SHEATH mm	NOMINAL DIAMETER mm	NOMINAL WEIGHT kg/100m
6	1.5	84x0.3	6.5	7/0.25	7.2	18/0.3	1	3.8	30	135
10	15	77x0.4	7.7	7/0.25	8.6	27/0.3	1	3.8	32.6	166
16	1.6	126x0.4	9	7/0.25	9.6	42/0.3	1	4	35.8	204
25	1.6	209x0.4	10.5	7/0.25	11.3	66/0.3	1.2	4.3	39.7	269
35	1.6	285x0.4	12.1	7/0.25	12.4	90/0.3	1.2	4.6	43.8	324
50	1.7	380x0.4	13.8	7/0.25	14.4	120/0.3	1.2	5	48.4	403
70	1.8	361x0.5	16.1	7/0.25	16.5	110/0.4	1.2	5.4	54	539
95	2	475x0.5	17.7	7/0.30	21.8	110/0.4	1.2	6	59.4	659
120	2.1	608x0.5	20	7/0.30	24.7	135/0.4	1.4	6.4	65.2	802
150	2.3	740x0.5	22.2	7/0.40	36.9	152/0.4	1.4	6.9	72.2	1018
185	2.5	925x0.5	24.7	7/0.40	40.5	177/0.4	1.4	7.4	78.8	1198
240	2.8	1221x0.5	27.9	7/0.50	57.7	216/0.4	1.6	8.2	88.7	1549

NOMINAL CONDUCTOR AREA mm2	THICKNESS OF INSULATION mm	NUMBER AND NOMINAL DIAMETER OF WIRES n x mm	NOMINAL DIAMETER OVER INSULATION mm	CORE SCREEN SIZE mm	AREA OF SCREEN mm2	PILOT COND.STRAND/SIZE No/mm	THICKNESS EPR COVERING mm	NOMINAL THICKNESS OF SHEATH mm	NOMINAL DIAMETER mm	NOMINAL WEIGHT kg/100m
16	3	126x0.4	12.5	7/0.25	13.1	42/0.3	1.4	5.3	46.1	304
25	3	209x0.4	14	7/0.25	14.8	66/0.3	1.4	5.6	50	379
35	3	285x0.4	15.3	7/0.25	15.8	90/0.3	1.4	5.9	53.4	446
50	3	380x0.4	16.8	7/0.25	17.2	120/0.3	1.4	6.3	57.5	524
70	3	361x0.5	20	7/0.25	18.6	110/0.4	1.4	6.6	62.4	659
95	3	475x0.5	22.1	7/0.25	20.3	110/0.4	1.6	7.1	66.2	754
120	3	608x0.5	23.9	7/0.30	27.2	135/0.4	1.6	7.4	71.9	914
150	3	740x0.5	26	7/0.40	39.6	152/0.4	1.6	7.8	77.9	1119
185	3	925x0.5	28.6	7/0.40	42.2	177/0.4	1.6	8.2	83.4	1289
240	3	1221x0.5	31.2	7/0.40	46.6	216/0.4	1.6	8.8	90.2	1559

NOMINAL CONDUCTOR AREA mm2	THICKNESS OF INSULATION mm	NUMBER AND NOMINAL DIAMETER OF WIRES n x mm	NOMINAL DIAMETER OVER INSULATION mm	CORE SCREEN SIZE mm	AREA OF SCREEN mm2	PILOT COND.STRAND/SIZE No/mm	THICKNESS EPR COVERING mm	NOMINAL THICKNESS OF SHEATH mm	NOMINAL DIAMETER mm	NOMINAL WEIGHT kg/100m
16	5	126x0.4	16.5	7/0.25	17.2	42/0.3	1.4	6.4	57.3	444
25	5	209x0.4	18	7/0.25	18.6	66/0.3	1.6	6.7	61.2	523
35	5	285x0.4	19.3	7/0.25	18.6	90/0.3	1.6	7	64.6	599
50	5	380x0.4	20.8	7/0.25	21.3	120/0.3	1.8	7.3	68.5	689
70	5	361x0.5	22.8	7/0.25	23.4	110/0.4	1.8	7.7	73.7	834
95	5	475x0.5	24	7/0.30	29.2	110/0.4	1.8	8.1	77.8	964
120	5	608x0.5	26.1	7/0.30	31.7	135/0.4	1.8	8.5	83.1	1119
150	5	740x0.5	27.9	7/0.40	45.7	152/0.4	1.8	8.9	89.1	1349
185	5	925x0.5	30	7/0.40	48.4	177/0.4	1.8	9.3	94.5	1529

NOMINAL CONDUCTOR AREA mm2	THICKNESS OF INSULATION mm	NUMBER AND NOMINAL DIAMETER OF WIRES n x mm	NOMINAL DIAMETER OVER INSULATION mm	CORE SCREEN SIZE mm	AREA OF SCREEN mm2	PILOT COND.STRAND/SIZE No/mm	THICKNESS EPR COVERING mm	NOMINAL THICKNESS OF SHEATH mm	NOMINAL DIAMETER mm	NOMINAL WEIGHT kg/100m
25	7.6	209x0.4	23.4	7/0.25	23.7	66/0.3	2	8.1	75.6	759
35	7.6	285x0.4	24.7	7/0.30	30.2	90/0.3	2	8.4	79.6	869
50	7.6	380x0.4	26.2	7/0.30	31.7	120/0.3	2	8.7	83.5	974
70	7.6	361x0.5	28.2	7/0.30	34.1	110/0.4	2	9.1	88.7	1139
95	7.6	475x0.5	29.4	7/0.40	47.5	110/0.4	2.2	9.6	93.6	1319
120	7.6	608x0.5	31.5	7/0.40	51	135/0.4	2.2	9.9	98.7	1489
150	7.6	740x0.5	33.3	7/0.40	53.7	152/0.4	2.2	10.3	103.4	1679

NOMINAL CONDUCTOR AREA mm2	THICKNESS OF INSULATION mm	NUMBER AND NOMINAL DIAMETER OF WIRES n x mm	NOMINAL DIAMETER OVER INSULATION mm	CORE SCREEN SIZE mm	AREA OF SCREEN mm2	PILOT COND.STRAND/SIZE No/mm	THICKNESS EPR COVERING mm	NOMINAL THICKNESS OF SHEATH mm	NOMINAL DIAMETER mm	NOMINAL WEIGHT kg/100m
35	10.5	285x04	32.6	7/0.40	55.4	90/0.3	2.5	10	104.9	1429
50	10.5	380x0.4	34.1	7/0.40	58.1	120/0.3	2.5	10.3	108.8	1549
