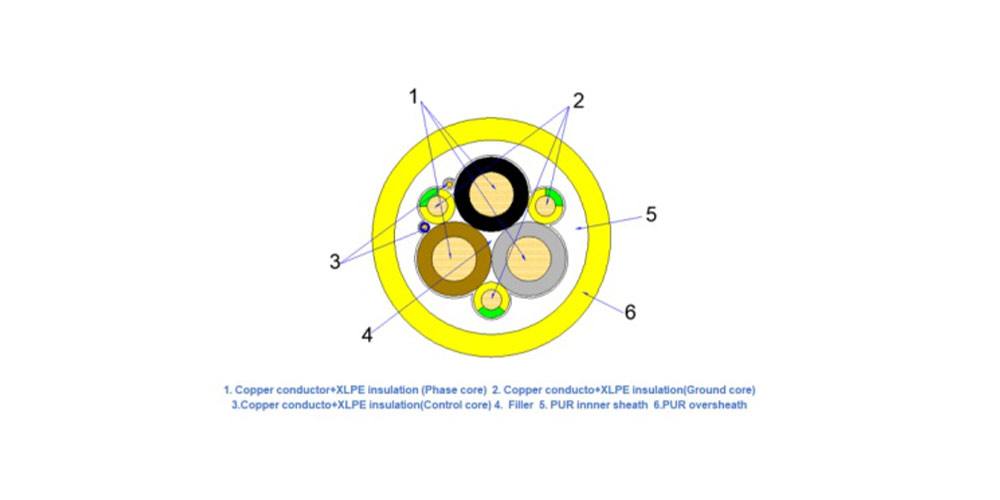

0.6/1(1.2) KV Buflex M Cable Construction
| Conductor | Flexible bare copper Class 5(IEC 60228) |
| Insulation | XLPE |
| Inner sheath | Polyurethane thermoplastic compound |
| Outer sheath | Flame retardant polyurethane(oil and UV resistant) |
| Colour | Yellow |
| Cores identification | Phase cores: brown – black – grey |
| Earth cores : yellow/green | |
| Pilot cores : white – blue |
0.6/1(1.2) KV Buflex M Cable Application
On a concrete-mortar installation. This cable fits into the power circuit and is constantly moving along with the solution hopper
0.6/1(1.2) KV Buflex M Cable Characteristics
Rating and test voltages
- Rated voltage Uo/U 0,6/1 kV A.C.
- Max voltage Um 1,2 kV A.C.
- Test voltage 3,5 kV A.C.
Temperature ratings
- + 90°C Maximum conductor temperature
- – 30°C Minimum ambient temperature during work
0.6/1(1.2) KV Buflex M Cable Specification
| Cable | Outer diam. | Weight | Minimum bending radius | ||
|---|---|---|---|---|---|
| mm2) | Min.(mm) | Max.(mm) | approx.(kg/km) | static (mm) | dynamic (mm) |
| 3x25+3G6+2x1x1 | 21,5 | 24,0 | 1200 | 144 | 192 |
| 3x35+3G6+2x1x1.5 | 25,0 | 28,0 | 1600 | 168 | 224 |
| 3x50+3G10+2x1x1.5 | 29,0 | 32,0 | 2100 | 192 | 256 |
| 3x70+3G16+2x1x1.5 | 34,0 | 37,0 | 3000 | 222 | 296 |
| 3x95+3G16+2x1x1.5 | 39,0 | 42,0 | 3900 | 252 | 336 |
| 3x120+3G25+2x1x1.5 | 42,0 | 46,5 | 4900 | 279 | 372 |
| 3x150+3G25+2x1x1.5 | 48,5 | 52,0 | 6000 | 312 | 416 |
| 3x185+3G35+2x1x1.5 | 53,5 | 56,0 | 7400 | 336 | 448 |
| 3x240+3G50+2x1x1.5 | 61,5 | 64,5 | 9600 | 387 | 516 |
