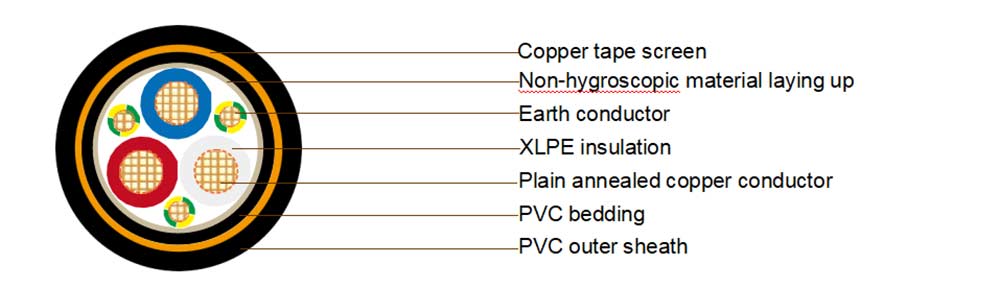

Multicore XLPE Insulated VSD/EMC Cable Construction
| Conductor | Class 2 Plain Annealed Copper |
| No. of cores | 1.5mm2 ~ 6mm2 : 3C+E, 10mm2 ~ 300mm2 : 3C+3E |
| Insulation | XLPE X-90 |
| Insulation colour | Red, White, Blue & Green/Yellow |
| Bedding | PVC 5V-90 |
| Screen | Copper Tape |
| Sheath | PVC 5V-90 |
| Sheath colour | Black |
Multicore XLPE Insulated VSD/EMC Cable Application
These cables are used to supply motors from variable speed controls unenclosed, enclosed in conduit, mounted on tray, or in underground ducts for industrial plants, where not subject to mechanical damage. They are designed to significantly reduce radiated interference from electrical noise by using symmetrical, balanced and screened construction.
Multicore XLPE Insulated VSD/EMC Cable Technical Data
- Voltage Rating: 0.6/1kV
- Operating Temperature: -40°C to +90°C
- Short Circuit Temperature : 250°C for 5 sec
Multicore XLPE Insulated VSD/EMC Cable Standards
- AS/NZS 5000.1
- AS/NZS 1660.5.6 (Equivalent to IEC 60332-1)
- AS/NZS 3808
- AS/NZS 1660.5.1 (Equivalent to IEC60332-3-24)
- AS/NZS 1125
Multicore XLPE Insulated VSD/EMC Cable Specification
| No. of Core | Nom.conductor area mm² | Core diameter mm | Earth conductor area mm² | Earth core diameter mm | Over bedding diameter mm | Cable diameter mm | Approx. mass kg/km |
|---|---|---|---|---|---|---|---|
| 3C+E | 2.5 | 3.7 | 2.5 | 3.5 | 10.9 | 15 | 330 |
| 3C+E | 4 | 4.7 | 4 | 4.7 | 13 | 15.3 | 375 |
| 3C+3E | 6 | 5.3 | 1.5 | 3 | 13.8 | 16.9 | 415 |
| 3C+3E | 10 | 6.2 | 1.5 | 3 | 14.8 | 17.8 | 550 |
| 3C+3E | 16 | 7.4 | 2.5 | 3.5 | 17 | 21 | 760 |
| 3C+3E | 25 | 9.1 | 4 | 4.7 | 19.2 | 24.4 | 1130 |
| 3C+3E | 35 | 10.3 | 6 | 5.3 | 21.9 | 27.2 | 1480 |
| 3C+3E | 50 | 12.3 | 10 | 6.2 | 25.1 | 30.8 | 2110 |
| 3C+3E | 70 | 14 | 10 | 6.2 | 28.1 | 35.7 | 2740 |
| 3C+3E | 95 | 15.3 | 16 | 7.4 | 33.9 | 39.9 | 3590 |
| 3C+3E | 120 | 17.1 | 16 | 7.4 | 38.9 | 43.8 | 4400 |
| 3C+3E | 150 | 19.2 | 25 | 9.1 | 42.6 | 48.4 | 5450 |
| 3C+3E | 185 | 21.5 | 25 | 9.1 | 47.5 | 54.1 | 6760 |
| 3C+3E | 240 | 24.2 | 35 | 10.3 | 53.6 | 60.2 | 8600 |
| 3C+3E | 300 | 26.8 | 50 | 12.3 | 59.6 | 66.3 | 10640 |
