N2XSEBY/NA2XSEYBY Medium Voltage Aluminium/Copper Double Galvanized Steel Tape Armoured Cable

N2XSEBY/NA2XSEYBY cable is a medium voltage power cable designed for various installations, including indoor, tunnels, cable trenches, and direct burial in the ground. N2X/NA2X: Indicates XLPE (cross-linked polyethylene) insulation. S: Indicates a metallic screen, typically copper tape. E: Indicates a semiconducting layer, often an extruded semi-conducting compound. BY: Indicates steel tape armour for mechanical protection.

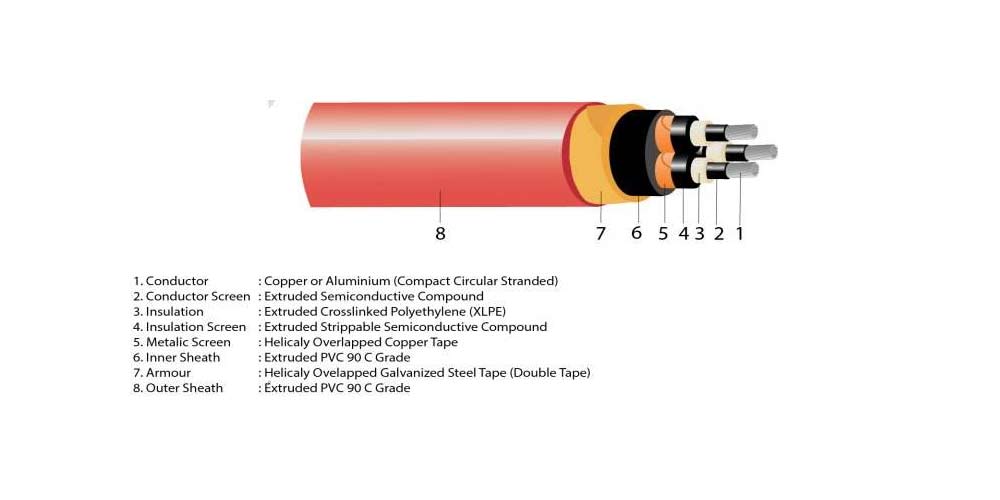

N2XSEBY/NA2XSEYBY Cable Construction

Conductor	Copper or Aluminium (Compact Circular Stranded)
Conductor Screen	Extruded Semiconductive Compound
Insulation	Extruded Crosslinked Polyethylene (XLPЕ)
Insulation Screen	Extruded Strippable Semiconductive Compound
Metalic Screen	Helicaly Overlapped Copper Tape
Inner Sheath	Extruded PVC 90°C Grade
Armour	Helicaly Overlapped Galvanized Steel Tape (Double Tape)
Outer Sheath	Extruded PVC 90°C Grade

N2XSEBY/NA2XSEYBY Cable Application

Suitable for Distribution indoor and outdoor Installation, Direct Burial or on Trays.

N2XSEBY/NA2XSEYBY Cable Characteristics

Nominal Voltage (max system voltage):

3.5/6 kV (7.2 kV)
6/10 kV (12 kV)
8.7/15 kV (17.5 kV)
12/20 kV (24 kV)
18/30 kV (36 kV)

N2XSEBY/NA2XSEYBY Cable Standards

IEC 60502-2: 2005

3.6/6(7.2) kV N2XSEBY/NA2XSEYBY Specification
6/10(12) kV N2XSEBY/NA2XSEYBY Specification
8.7/15(17.5) kV N2XSEBY/NA2XSEYBY Specification
12/20(24) kV N2XSEBY/NA2XSEYBY Specification
18/30(36) kV N2XSEBY/NA2XSEYBY Specification

Nominal cross-sectional area	Conductor diameter (approx)	Nominal insulation thickness	Insulation diameter (approx)	Nominal tape armour thickness	Nominal outer sheath thickness	Overall cable diameter (approx)	Cable net weight ( approx)		Standard length per-reel	Minimum bending radius	AC test voltage
Nominal cross-sectional area	Conductor diameter (approx)	Nominal insulation thickness	Insulation diameter (approx)	Nominal tape armour thickness	Nominal outer sheath thickness	Overall cable diameter (approx)	CU	AL	Standard length per-reel	Minimum bending radius	AC test voltage
mm2	mm	mm	mm	mm	mm	mm	Kg/Km		m	mm	kV/5 min
25	6.05	2.5	12.5	0.5	2.2	39	2,800	2,300	500	340	12.5 (IEC) , 9 (SPLN)
35	7.1	2.5	13.5	0.5	2.3	42	3,200	2,600	500	370
50	8.25	2.5	14.7	0.5	2.4	45	3,800	2,900	500	400
70	9.9	2.5	16.3	0.5	2.5	49	4,700	3,400	500	440
95	11.7	2.5	18.1	0.5	2.6	53	5,800	4,000	500	490
120	13.1	2.5	19.5	0.5	2.7	53	6,800	4,600	500	520
150	14.3	2.5	20.7	0.5	2.8	59	7,900	5,100	500	550
185	16.3	2.5	22.7	0.5	2.9	64	9,400	5,900	500	600
240	18.2	2.6	24.8	0.5	3.1	70	11,700	7,000	350	670
300	20.9	2.8	27.9	0.5	3.3	76	14,100	8,300	350	730
400	23.7	3	31.9	0.8	3.6	85	18,300	10,900	350	820

Nominal cross-sectional area	Conductor diameter (approx)	Nominal insulation thickness	Insulation diameter (approx)	Nominal tape armour thickness	Nominal outer sheath thickness	Overall cable diameter (approx)	Cable net weight ( approx)		Standard length per-reel	Minimum bending radius	AC test voltage
Nominal cross-sectional area	Conductor diameter (approx)	Nominal insulation thickness	Insulation diameter (approx)	Nominal tape armour thickness	Nominal outer sheath thickness	Overall cable diameter (approx)	CU	AL	Standard length per-reel	Minimum bending radius	AC test voltage
mm2	mm	mm	mm	mm	mm	mm	Kg/Km		m	mm	kV/5 min
6.05	6.05	3.4	14.3	0.5	2.3	44	3,200	2,700	500	380	21 (IEC) , 15 (SPLN)
7.1	7.1		15.3	0.5	2.4	46	3,700	3,000	500	400
8.25	8.25		16.5	0.5	2.5	49	4,300	3,400	500	430
9.9	9.9		18.1	0.5	2.6	53	5,200	3,900	500	470
11.7	11.7		19.9	0.5	2.8	57	6,400	4,600	500	520
13.1	13.1		21.3	0.5	2.9	61	7,400	5,200	500	560
14.3	14.3		22.5	0.5	3	64	8,500	5,700	500	590
16.3	16.3		24.5	0.5	3.1	68	10,000	6,500	500	630
18.2	18.2		26.9	0.5	3.3	74	12,300	7,600	350	700
20.9	20.9		29.1	0.5	3.4	79	14,600	8,800	350	750
23.7	23.7		31.9	0.8	3.7	87	18,700	11,300	350	830

Nominal cross-sectional area	Conductor diameter (approx)	Nominal insulation thickness	Insulation diameter (approx)	Nominal tape armour thickness	Nominal outer sheath thickness	Overall cable diameter (approx)	Cable net weight ( approx)		Standard length per-reel	Minimum bending radius	AC test voltage
Nominal cross-sectional area	Conductor diameter (approx)	Nominal insulation thickness	Insulation diameter (approx)	Nominal tape armour thickness	Nominal outer sheath thickness	Overall cable diameter (approx)	CU	AL	Standard length per-reel	Minimum bending radius	AC test voltage
mm2	mm	mm	mm	mm	mm	mm	Kg/Km		m	mm	kV/5 min
25	6.05	4.5	16.5	0.5	2.5	49	3,800	3,300	500	410	30.5 (IEC) , 22 (SPLN)
35	7.1		17.5	0.5	2.6	51	4,300	3,600	500	440
50	8.25		18.7	0.5	2.7	54	4,900	4,000	500	470
70	9.9		20.3	0.5	2.8	58	5,900	4,600	500	510
95	11.7		22.1	0.5	2.9	62	7,100	5,300	500	550
120	13.1		23.5	0.5	3	66	8,100	5,900	500	590
150	14.3		24.7	0.5	3.1	69	9,200	6,400	350	630
185	16.3		25.7	0.5	3.3	69	10,900	7,400	350	680
240	18.2		29.1	0.5	3.4	69	13,100	8,500	350	780
300	20.9		31.3	0.8	3.6	86	16,400	10,600	350	800
400	23.7		34.1	0.8	3.9	93	19,700	12,300	350	880

Nominal cross-sectional area	Conductor diameter (approx)	Nominal insulation thickness	Insulation diameter (approx)	Nominal tape armour thickness	Nominal outer sheath thickness	Overall cable diameter (approx)	Cable net weight ( approx)		Standard length per-reel	Minimum bending radius	AC test voltage
Nominal cross-sectional area	Conductor diameter (approx)	Nominal insulation thickness	Insulation diameter (approx)	Nominal tape armour thickness	Nominal outer sheath thickness	Overall cable diameter (approx)	CU	AL	Standard length per-reel	Minimum bending radius	AC test voltage
mm2	mm	mm	mm	mm	mm	mm	Kg/Km		m	mm	kV/5 min
35	7.1	5.5	19.7	0.5	2.7	57	4,900	4,200	500	480	42 (IEC) , 30(SPLN)
50	8.25		20.9	0.5	2.9	60	5,600	4,700	500	510
70	9.9		22.5	0.5	3	64	6,600	5,300	500	550
95	11.7		24.3	0.5	3.1	68	7,800	6,000	500	600
120	13.1		25.7	0.5	3.2	71	8,900	6,600	350	630
150	14.3		26.9	0.5	3.3	74	10,100	7,200	350	660
185	16.3		28.9	0.5	3.4	79	11,700	8,200	350	720
240	18.2		31.3	0.8	3.6	86	14,900	10,200	300	790
300	20.9		33.5	0.8	3.8	91	17,400	11,600	300	840
400	23.7		36.3	0.8	4	98	20,800	13,400	300	910

Nominal cross-sectional area	Conductor diameter (approx)	Nominal insulation thickness	Insulation diameter (approx)	Nominal tape armour thickness	Nominal outer sheath thickness	Overall cable diameter (approx)	Cable net weight ( approx)		Standard length per-reel	Minimum bending radius	AC test voltage
Nominal cross-sectional area	Conductor diameter (approx)	Nominal insulation thickness	Insulation diameter (approx)	Nominal tape armour thickness	Nominal outer sheath thickness	Overall cable diameter (approx)	CU	AL	Standard length per-reel	Minimum bending radius	AC test voltage
mm2	mm	mm	mm	mm	mm	mm	Kg/Km		m	mm	kV/5 min
50	8.25	8.0	25.9	0.5	3.2	72	7,300	6,400	500	600	63
70	9.9		27.5	0.5	3.3	75	8,400	7,100	500	640
95	11.7		29.3	0.5	3.5	80	9,700	7,900	500	690
120	13.1		30.7	0.8	3.6	84	11,700	9,400	350	730
150	14.3		31.9	0.8	3.7	87	12,900	10,100	350	760
185	16.3		33.9	0.8	3.9	92	14,800	11,300	350	810
240	18.2		36.3	0.8	4	98	17,300	12,600	300	880
300	20.9		38.5	0.8	4.2	103	20,000	14,100	300	930
400	23.7		41.3	0.8	4.4	110	23,500	16,000	300	1,000
