0.6/1kV V90 PVC Heavy Duty Flexible Cord

The Australian standard AS/NZS 5000.1 includes cables referenced as V90 Flexible Cords. V90 flexible cords are for internal wiring applications, in dry environments. The Heavy Duty cables are a 0.6/1kV voltage rating and also cover three-phase flexible power supply for small industrial and commercial equipment such as motors with additional single phase pilot lights, welders and industrial sweepers, as well as double insulated appliances subject to a higher degree of mechanical stress. The Heavy Duty cable is the only one of the three that can be used in damp and wet conditions.

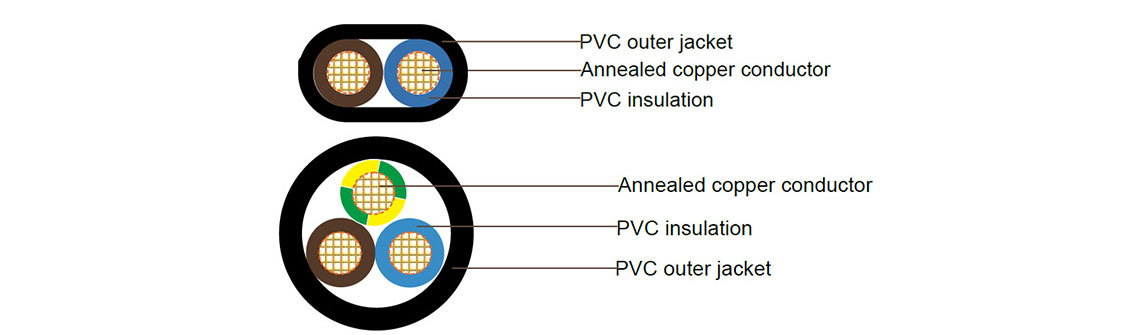

V90 PVC Heavy Duty Flexible Cord Construction

Conductor	Annealed copper conductor to AS/NZS 1125
	Maximum continuous operating temperature: 90°C
Insulation	V-90 PVC
Colours
To AS/NZS 3191 (≤4 mm2)	1C - Red, White, Light Blue, Black
	2C - Brown, Light Blue
	3C - Brown, Light Blue, Green/Yellow
	4C - Brown, Light Blue, White, Green/Yellow
	5C - Brown, Light Blue, Orange, White, Green/Yellow
To AS/NZS 5000.1 (≥6 mm2)	3C - Red, Black, Green/Yellow
	4C - Red, White, Black, Green/Yellow
	5C - Red, White, Blue, Black, Green/Yellow
Sheath	5V-90 PVC
Colours	Black, Orange

V90 PVC Heavy Duty Flexible Cord Application

These cables are suitable for installation in switchboards and control panels where confined spaces and tortuous routes are encountered, or where flexibility is needed for hinged panels, and for fixed wiring within other enclosures where the cable is not accessible without the use of tools. they are suitable for extension leads in sizes 1 mm2 and above and suitable for supply to small industrial and commercial equipment requiring three phase power. They are also suitable for equipment requiring three phase and single phase supply and an earth connection, for example equipment containing a three phase motor and single phase pilot lights, such as industrial sweepers, vacuum cleaners, welders, etc, also suitable for use with double insulated appliances where the cord is subject to higher mechanical stress, in damp and wet conditions.

V90 PVC Heavy Duty Flexible Cord Standard

AS/NZS 5000.1
AS/NZS 3191
AS/NZS 1125

V90 PVC Heavy Duty Flexible Cord Technical Characteristics

Conductor Size	Current Carrying Capacity	Max. DC Resistance	Max. AC Resistance	Single Phase Voltage Drop
mm²	A	Ohm/km @ 20 °C	Ohm/km @ 90 °C	MV/A.m
0.5	3	39	49.7	99.4
0.75	7.5	26	33.2	66.3
1	10	19.5	24.9	49.8
1.5	16	13.3	17	34
2.5	20	7.98	10.2	20.3
4	25	4.95	6.31	12.6

V90 PVC Heavy Duty Flexible Cord Specification

Conductor Size	No.of cores	Nominal Insulation Thickness	Nominal Sheath Thickness	Nominal O.D.	Approx. Cable Weight
mm2		mm	mm	mm	kg/100m
Round without sheath
0.5	1	0.8	-	2.6	1.1
0.75	1	0.8	-	2.8	1.4
1	1	0.8	-	2.9	1.6
1.5	1	0.8	-	3.2	2.1
2.5	1	0.9	-	3.9	3.3
4	1	1	-	4.7	5.5
Round
0.75	1	0.8	1.3	5.4	3.8
1	1	0.8	1.3	5.6	4.2
1.5	1	0.8	1.4	6.1	5.2
2.5	1	0.9	1.4	6.8	6.9
4	1	1	1.5	7.7	9.4
0.75	2	0.8	1.3	8.2	8.4
1	2	0.8	1.3	8.6	9.3
1.5	2	0.8	1.5	9.5	12
2.5	2	0.9	1.7	11.2	17
4	2	1	1.8	13	25
Round with ground conductor
0.75	3	0.8	1.4	8.8	10
1	3	0.8	1.4	9.2	11
1.5	3	0.8	1.6	10.2	15
2.5	3	0.9	1.8	12.1	21
4	3	1	1.9	13.9	30
6	3	1	2.9	16	44
10	3	1	3.1	20.5	69
16	3	1	3.3	24.1	90
25	3	1.2	3.7	29.4	140
35	3	1.2	4	32.5	181
50	3	1.4	4.4	37.7	241
0.75	4	0.8	1.5	9.8	12
1	4	0.8	1.5	10.2	14
1.5	4	0.8	1.7	11.3	18
2.5	4	0.9	1.9	13.3	26
4	4	1	2	15.4	38
6	4	1	3	17.6	54
10	4	1	3.3	22.6	85
16	4	1	3.5	26.1	122
25	4	1.2	3.9	32	191
35	4	1.2	4.2	35.3	246
50	4	1.4	4.7	41.2	332
70	4	1.4	5.1	48.3	460
95	4	1.6	5.7	53.3	577
120	4	1.6	6.1	60	731
0.75	5	0.8	1.6	10.8	15
1	5	0.8	1.6	11.2	17
1.5	5	0.8	1.8	12.4	21
2.5	5	0.9	2	14.6	30
4	5	1	2.2	17.1	46
