250/250V V75 PVC Light Duty Flexible Cord

V75 flexible cord is a 75℃ cable with flexible stranded copper conductors. They are manufactured in accordance with Australian and New Zealand standard AS/NZS 5000.1 for insulated cables with a rated voltage not exceeding 1kV. Light Duty is 250/250V.

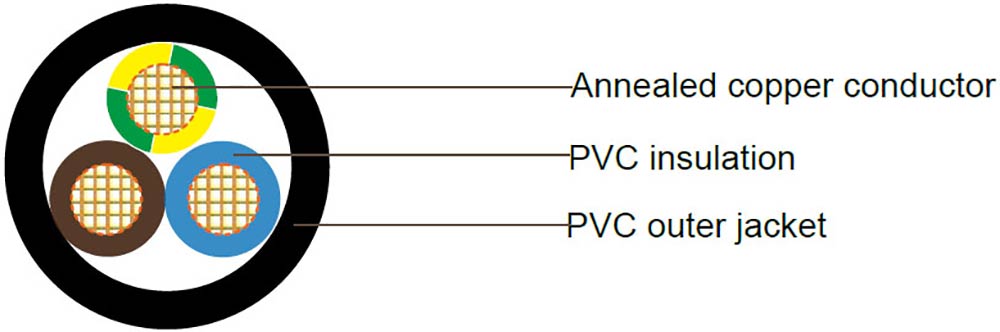

V75 PVC Light Duty Flexible Cord Construction

Conductor	Annealed copper conductor to AS/NZS 1125
	Maximum operating temperature: 75°C
Insulation	V-75 PVC
Colours	2C Brown, Light Blue
	3C Brown, Light Blue, Green/Yellow
Sheath	4V-75 PVC
Colours	Grey, White, Black, Orange

V75 PVC Light Duty Flexible Cord Application

These cables are suitable for installing in dry applications only. They are use in radios, shavers, desk lamps and small portable equipment or use in office machines, hair dryers etc.and for appliances requiring an earth connection. Also suitable for use with double insulated appliances where the cord is not subject to mechanical stress.

V75 PVC Light Duty Flexible Cord Standard

AS/NZS 3191, AS/NZS 1125

250/250V V75 PVC Light Duty Flexible Cord Specification

Conductor Size	Current Carrying Capacity	Max. DC Resistance	Max. AC Resistance	Single Phase Voltage Drop
mm²	A	Ohm/km @ 20 °C	Ohm/km @ 90 °C	MV/A.m
0.5	3	39	47.4	94.7
0.75	7.5	26	31.6	63.2
1	10	19.5	23.7	47.5
1.5	16	13.3	16.2	32.3
2.5	20	7.98	9.7	19.4
4	25	4.95	6.02	12
Conductor Size	No.of cores	Nominal Insulation Thickness	Nominal Sheath Thickness	Nominal O.D.	Approx. Cable Weight
mm2		mm	mm	mm	kg/100m
Round
0.5	2	0.5	0.6	5.2	3.7
0.5	3	0.5	0.6	5.5	4.2
0.75	2	0.5	0.6	5.6	4.5
0.75	3	0.5	0.6	5.9	5.4
Parallel Webbed, Flat, Unsheathed
0.5	2	0.8	-	5.2×2.6	2.2
0.75	2	0.8	-	5.6×2.8	2.7
