250/250V V90 PVC Light Duty Flexible Cord

The Australian standard AS/NZS 5000.1 includes cables referenced as V90 Flexible Cords. V90 flexible cords are for internal wiring applications, in dry environments. The Light Duty cables are of rated voltage 250/250V and can be used in small portable equipment such as lamps and radios, and in double insulated appliances where the cable is not subject to mechanical stress.

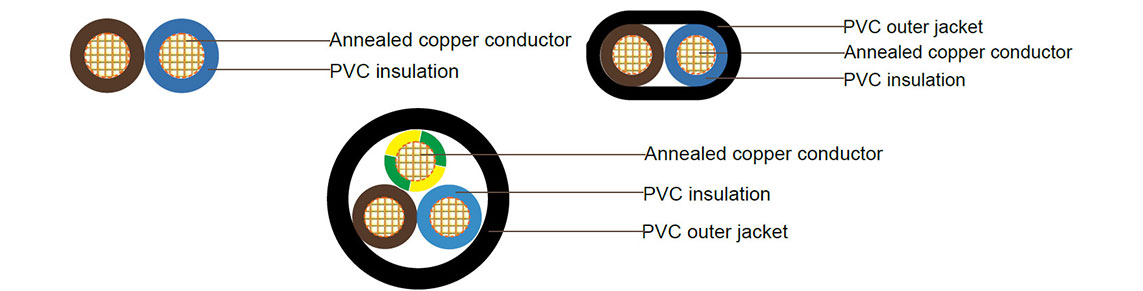

V90 PVC Light Duty Flexible Cord Construction

Conductor	Annealed copper conductor to AS/NZS 1125
	Maximum continuous operating temperature: 90°C
Insulation	V-90 PVC
Colours	2C Brown, Light Blue
	3C Brown, Light Blue, Green/Yellow
Sheath	5V-90 PVC
Colours	Grey, White, Black, Orange

V90 PVC Light Duty Flexible Cord Application

These cables are suitable for installing in dry applications only. They are use in radios, shavers, desk lamps and small portable equipment or use in office machines, hair dryers etc. and for appliances requiring an earth connection. Also suitable for use with double insulated appliances where the cord is not subject to mechanical stress.

V90 PVC Light Duty Flexible Cord Standard

AS/NZS 3191
AS/NZS 1125

V90 PVC Light Duty Flexible Cord Technical Characteristics

Conductor Size	Current Carrying Capacity	Max. DC Resistance	Max. AC Resistance	Single Phase Voltage Drop
mm²	A	Ohm/km @ 20 °C	Ohm/km @ 90 °C	MV/A.m
0.5	3	39	49.7	99.4
0.75	7.5	26	33.2	66.3
1	10	19.5	24.9	49.8
1.5	16	13.3	17	34
2.5	20	7.98	10.2	20.3
4	25	4.95	6.31	12.6

V90 PVC Light Duty Flexible Cord Specification

Conductor Size	No.of cores	Nominal Insulation Thickness	Nominal Sheath Thickness	Nominal O.D.	Approx. Cable Weight
mm²		mm	mm	mm	kg/100m
Flat
0.5	2	0.5	0.6	5.2×3.3	2.8
0.75	2	0.5	0.6	5.6×3.5	3.4
Round
0.5	2	0.5	0.6	5.2	3.7
0.5	3	0.5	0.6	5.5	4.2
0.75	2	0.5	0.6	5.6	4.5
0.75	3	0.5	0.6	5.9	5.4
Parallel Webbed, Flat, Unsheathed
0.5	2	0.8	-	5.2×2.6	2.2
0.75	2	0.8	-	5.6×2.8	2.7
1	2	0.8	-	6.0×3.0	3.3
1.5	2	0.8	-	6.6×3.3	4.5
2.5	2	0.9	-	7.9×3.9	6.6
4	2	1	-	9.3×4.7	11
