250/400V V75 PVC Ordinary Duty Flexible Cord

V75 flexible cord is a 75℃ cable with flexible stranded copper conductors. They are manufactured in accordance with Australian and New Zealand standard AS/NZS 5000.1 for insulated cables. Ordinary Duty is 250/400V, these cables should be installed internally, in dry conditions.

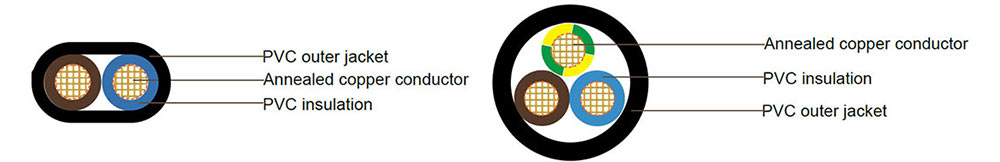

V75 PVC Ordinary Duty Flexible Cord Construction

Conductor	Annealed copper conductor to AS/NZS 1125
	Maximum continuous operating temperature: 75°C
Insulation	V-75 PVC
Colours	1C - Red, White, Light Blue, Black
	2C - Brown, Light Blue
	3C - Brown, Light Blue, Green/Yellow
	4C - Brown, Light Blue, White, Green/Yellow
	5C - Brown, Light Blue, Orange, White, Green/Yellow
Sheath	4V-75 PVC
Colours	Grey, White, Black, Orange

V75 PVC Ordinary Duty Flexible Cord Application

Ordinary Duty flexible cords for installation in dry environments only, in conduit or enclosures such as switchboards, control panels, appliances and electrical equipment including radios, desk lamps and office machines. Available in flat and round configurations, as single and multicores – with an earth core in 3 core and above cables for applications such as washing machines and dishwashers. Suitable as leads for industrial and office equipment requiring a three-phase supply and an earth connection.

V75 PVC Ordinary Duty Flexible Cord Standard

AS/NZS 3191, AS/NZS 1125

250/400V V75 PVC Ordinary Duty Flexible Cord Specification

Conductor Size	Current Carrying Capacity	Max. DC Resistance	Max. AC Resistance	Single Phase Voltage Drop
mm²	A	Ohm/km @ 20 °C	Ohm/km @ 90 °C	MV/A.m
0.5	3	39	47.4	94.7
0.75	7.5	26	31.6	63.2
1	10	19.5	23.7	47.5
1.5	16	13.3	16.2	32.3
2.5	20	7.98	9.7	19.4
4	25	4.95	6.02	12
Conductor Size	No.of cores	Nominal Insulation Thickness	Nominal Sheath Thickness	Nominal O.D.	Approx. Cable Weight
mm²		mm	mm	mm	kg/100m
Round
0.5	1	0.6	-	2.2	0.9
0.75	1	0.6	-	2.4	1.2
1	1	0.6	-	2.5	1.5
1.5	1	0.7	-	3	2.1
2.5	1	0.8	-	3.7	3.4
4	1	0.8	-	4.2	4.8
Flat
0.5	2	0.6	0.8	6.0×3.9	3.6
0.75	2	0.6	0.8	6.4×4.1	4.3
Round
0.75	2	0.6	0.8	6.4	5.7
1	2	0.6	0.8	6.7	6.5
1.5	2	0.7	0.8	7.7	8.9
2.5	2	0.8	1	9.4	14
4	2	0.8	1	10.5	18
0.75	3	0.6	0.8	6.8	6.8
1	3	0.6	0.8	7.1	7.9
1.5	3	0.7	0.9	8.4	11
2.5	3	0.8	1.1	10.2	17
4	3	0.8	1.1	11.4	23
0.75	4	0.6	0.8	7.4	8.2
1	4	0.6	0.9	8	9.9
1.5	4	0.7	1	9.4	14
2.5	4	0.8	1.1	11.2	21
4	4	0.8	1.1	12.5	29
0.75	5	0.6	0.9	8.3	10
1	5	0.6	0.9	8.7	12
1.5	5	0.7	1.1	10.5	17
2.5	5	0.8	1.2	12.4	26
4	5	0.8	1.3	14.1	36
