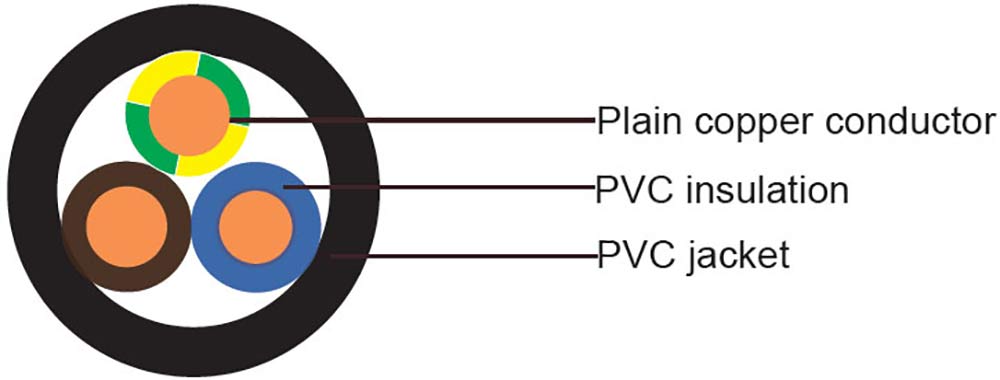

N05VV-U Cable Construction
| Conductor | Solid copper conductor |
| Insulation | PVC (Polyvinyl Chloride) |
| Sheath | PVC (Polyvinyl Chloride) |
| Sheath Colour | Gray |
N05VV-U Cable Application
These cables are used for electricity supply in low voltage installation system, They are suitable for installation in indoors and outdoors, in cable ducts, underground, in power and switching stations, local energy distributions, industrial plants, but it can not be embedded in concrete.
N05VV-U Cable Standard
NP – 2356/4
N05VV-U Cable Technical Characteristics
- Working Voltage: 300/500 volts
- Test voltage: 2000 volts
- Flexing bending radius: 15 x Ø
- Static bending radius: 12 x Ø
- Flexing temperature: -5º C to +50º C
- Fixed installation temperature: – 40º C to +70º C
- Flame retardant: IEC 60332-1
- Insulation resistance: 100 MΩ x km
N05VV-U Cable Specification
| No. of Cores x Nominal Cross Sectional Area # x mm² | Nominal Overall Diameter mm | Nominal Weight kg/km | No. of Cores x Nominal Cross Sectional Area # x mm² | Nominal Overall Diameter mm | Nominal Weight kg/km |
|---|---|---|---|---|---|
| 2x1.5 | 9 | 110 | 3x1.5 | 9.5 | 125 |
| 2x2.5 | 10 | 145 | 3x2.5 | 10.5 | 175 |
| 2x4.0 | 11 | 190 | 3x4.0 | 11.5 | 24 |
| 4x1.5 | 10 | 155 | 5x1.5 | 11 | 185 |
| 4x2.5 | 11.5 | 215 | 5x2.5 | 13 | 260 |
| 4x4.0 | 13 | 300 | 5x4.0 | 14.5 | 380 |
| 4x6.0 | 14.5 | 410 | 5x6.0 | 16 | 490 |
