0.6/1kV DN-F Rubber Cable

DN-F cable is a flexible and rubber cable for mobile heavy duty. Suitable for installations in dry, damp or wet locations, outdoors, for hazardous areas with explosive gas atmospheres, machines in industrial workshops, motors and transportable machines; on construction sites and for agricultural exploitation.

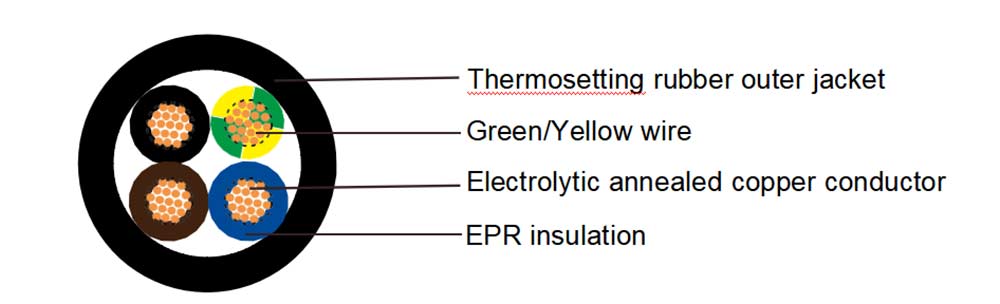

DN-F Rubber Cable Construction

Conductor	Flexible stranded copper wire. Class 5 acc/. UNE-EN 60228.
Insulation	UNE 21123 - Thermostable ethylene-propylene elastomer (EPR).
Identification	HD 308 S2
Assembly	Concentrically assembled insulated conductors.
Outer cover	UNE 21123 - Thermostable polychloroprene rubber elastomer type SE1.
Color	Black

DN-F Rubber Cable Application

Flexible cables are suitable for mobile applications with cross-linked insulation and rubber outer sheath for heavy-duty applications in dry, humid or wet locations, outdoors, in explosive atmospheres. Suitable for use in industrial and agricultural workshops, buildings, power supply of appliances for heavy-duty equipment, engines, transportable machines, lifting equipment, etc…. Suitable for submerged installations (AD8), submerged pumps.

DN-F Rubber Cable Technical Characteristics

Working voltage: 600/1000 volts
Test voltage: 2000 volts
Minimum bending radius: 3 x Ø
Working temperature: -25º C to +90º C
Short circuit temperature: +250º C
Flame retardant: IEC 60332.1
Insulation resistance: 20 MΩ x km

DN-F Rubber Cable Standard

UNE 21150, UNE 21166, EN 60332-1, IEC 60332-1

DN-F Rubber Cable Specification

AWG	No. of Cores x Nominal Cross Sectional Area # x mm²	Nominal Overall Diameter mm	Nominal Weight kg/km	AWG	No. of Cores x Nominal Cross Sectional Area # x mm²	Nominal Overall Diameter mm	Nominal Weight kg/km
10(84/28)	1×6	8.3	113	16(30/30)	3×1.5	10.9	163
8(80/26)	1×10	10	176	14(50/30)	3×2.5	12.2	216
6(128/26)	1×16	11.1	242	12(56/28)	3×4	13.9	296
4(200/26)	1×25	13.2	353	10(84/28)	3×6	15.4	385
2 (280/26)	1×35	14.7	470	8(80/26)	3×10	20	646
1(400/26)	1×50	17.1	645	6(128/26)	3×16	22.3	876
2/0	1×70	19.2	865	4(200/26)	3×25	26.8	1292
(356/24)
3/0	1×95	21.7	1121	2(280/26)	3×35	29.7	1691
(485/24)
4/0	1×120	23.4	1393	1(400/26)	3×50	35.4	2357
(614/24)
300 MCM	1×150	25.9	1717	2/0	3×70	39.6	3118
(765/24)				(356/24)
350 MCM	1×185	28.8	2079	3/0	3×95	45.1	4068
(944/24)				(485/24)
500MCM	1×240	31.9	2668	16(30/30)	4×1.5	11.9	199
(1225/24)
-	1×300	34.9	3272	14(50/30)	4×2.5	13.5	269
16(30/30)	2×1.5	9.3	115	12(56/28)	4×4	15.9	387
14(50/30)	2×2.5	10.7	166	10(84/28)	4×6	18.1	516
12(56/28)	2×4	12.3	226	8(80/26)	4×10	21.5	790
10(84/28)	2×6	13.6	286	6(128/26)	4×16	24.2	1081
8(80/26)	2×10	18	505
6(128/26)	2×16	21.3	713
4(200/26)	2×25	25.7	1050
